Shenzhen Aochuan Technology Co.,Ltd. was established in 2004, is a leading Chinese developer and manufacturer of thermal pad,thermal grease,Thermal Conductive Gap Filler,thermal interface material for
4 Years
| Ask Lasest Price | |
| Brand Name : | AOK |
| Model Number : | TP |
| Certification : | RoHS, Reach, UL |
| Payment Terms : | T/T |
| Delivery Time : | 13-15 working days |
| Attribute | Value | Test Method |
|---|---|---|
| Composition | Ceramic Filler + Silicone | - |
| Color | Pink | Visual |
| Thickness (mm) | 0.5~12.0 | ASTM d374 |
| Density (g/cc) | 2.3 | ASTM D792 |
| Hardness (Shore OO) | 20±5 | ASTM D2240 |
| Tensile Strength(kn/m) | 0.4 | ASTM D624 |
| Elongation % | 52 | ASTM D412 |
| Usage Temperature(℃) | -40~150 | - |
| Electrical | ||
| Breakdown Voltage(kv/mm) | ≥6.5 | ASTM D149 |
| Dielectric Constant(@1mhz) | 5.3 | ASTM D150 |
| Volume Resistivity(Ω.cm) | 1.0*1012 | ASTM D257 |
| Flammability | V-0 | UL94 |
| Thermal | ||
| Thermal conductivity(W/m.K) | 1.2±0.1 | ASTM D5470 |

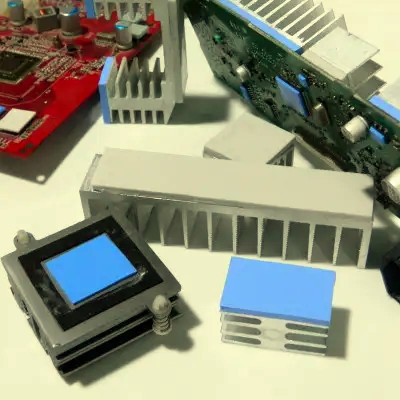

Typical applications:
1. Networking and Telecommunications
2. IT: Notebooks, Tablets, Power Conversion
3. Industrial: LEDs, Power Supplies and Conversion
4. Automotive: Control Modules, Turbo Actuators
5. Consumer Electronics: Gaming Systems, and LCDs
