Shenzhen Aochuan Technology Co.,Ltd. was established in 2004, is a leading Chinese developer and manufacturer of thermal pad,thermal grease,Thermal Conductive Gap Filler,thermal interface material for
4 Years
| Ask Lasest Price | |
| Brand Name : | AOK |
| Model Number : | TG |
| Certification : | RoHS, Reach, UL |
| Payment Terms : | T/T |
| Delivery Time : | 13-15 working days |
High Thermal Conductivity 1.0W/m.K Heat Sink Thermal Grease Gray 1kg Canned For CPU Radiator
| Attribute | Value | Test Method |
|---|---|---|
| Composition | Non-Vulcanized Silicone Oil and Thermally Conductive Filler Mixture | - |
| Color | White | Visual |
| Density(g/cc) | 2.8 | ASTM D792 |
| Usage Temperature(℃) | -40~150 | -- |
| Thermal | ||
| Thermal conductivity(W/m.K) | 1.0 | ASTM D5470 |
| Thermal Resistance(℃-in2/W)0.1mm@50psi) | 0.15 | ASTM D5470 |
Product feature
■ Thermal conductivity: 1.0~5.0 W/m.K
■ water resistant, non curing, non corrosive to metal materials in
contact (copper, aluminum, steel)
■ non toxic, tasteless, non corrosive, stable chemical and physical
properties
■ High volume applications
Typical applications
■ Networking and Telecommunications
■ IT: Notebooks, Tablets, Memory Modules
■ Industrial: suitable for surface coating and overall potting of
microwave communication, microwave transmission equipment, special
power supply, regulated power supply and other microwave devices
■ effective thermal connection for many heat sinks requiring
effective cooling
Product Reminder
Packing specification
Packing specification: 30 ml/1 Kg, 2 Kg,10 Kg

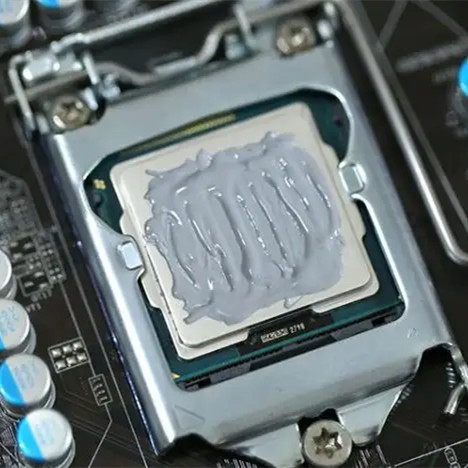

Instructions
Clean the application surface first, then stir the silicone grease
evenly, and then apply the silicone grease to the surface by dot
coating, brushing or screen printing. If screen printing is used,
it is recommended to use 60-80 mesh nylon screen, and a rubber
scraper with a hardness of about 70. When coating, apply silicone
grease at about 45 degrees to the coated surface. After the
operation, unused products should be sealed and stored in time.
Shelf life & Storage:
Shelf life of the product is 6 months after date of shipment. Store in a cool, dry, well ventilated place.
|
|
